An air source heat pump (ASHP) is an Energy Saving system which absorbs heat from the outside air and transfers it to inside water, which can not only supply hot water, but also be connected to radiators or underfloor heating pipes, thus providing heating or hot water.



We manufacture the right Energy Saving air source heat pump just for you.



AIR SOURCE HEAT PUMP PRODUCT FEATURES:



Applications:

It can be widely used in houses, villas, apartments, hotels, hospitals, restaurants, public buildings, offices, shops, bath centers, laundries etc.

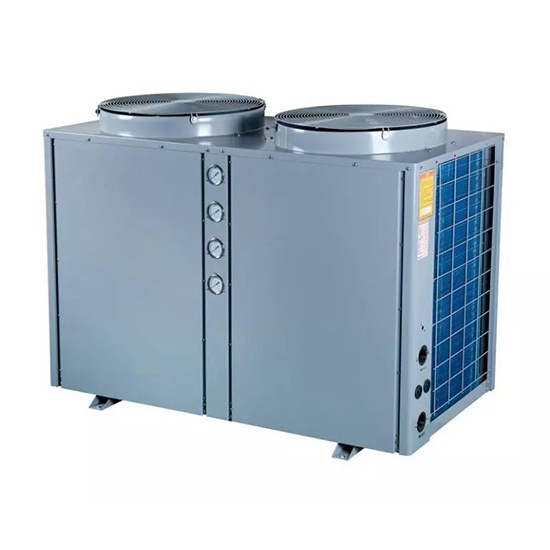

Specification - Air Source Heat Pump
TECHNICAL DATA			SKR100
Heating	Capacity	KW	36
	Power input	KW	9
	COP	W/W	4.00
Power supply		V/Ph/Hz	380-415/3/50
Max. leaving water temperature (without using backup heater)		℃	60
Rated water flow		m3/h	6.4
Rated water yield		L/H	780
Running temperature range		℃	-15℃-43℃
Refrigerant type			R410A
Compressor			Copeland,Sanyo, Panasonic, Dakin/  Scroll
Max current		A	21
Water circuit heat exchanger			High efficient shell&tube
Water pump			Outside
Net dimension  LxWxH		mm	1500×750×1060
Packing dimension LxWxH		mm	1550×800×1180
Air discharge direction			Vertical
Water connection		Inch	1.2"
Net weight		Kg	250
Gross weight		Kg	270
Noise level		dB(A)	64
Features:
ON/OFF or Inverter type			On/off unit
Manometer			Refrigerant pressure manometer
Expansion device			Electronic expansion valve
Auto restart			yes
NOTES: Capacity and power input based on the following condition: -Heating:Ambient temp.(DB/WB) 20℃/15℃,Water temp.(Inlet/Outlet) 15℃/55℃ -The related data is subject to adjustment periodically because of technical improvement without further notice.   Please refer to heat pump nameplate.

Specific Features:

1. Hot water output temperature up to 60°C

2. Sanyo or Copeland compressor, durable and long life time.

3. Branded expansion valve, and 4-way valve

4. Axial type fan motor with Nylon fan blades, low power consumption, low running noise, and long life time

5. High efficient shell & tube heat exchanger, low dirt and easy for maintenance

6. Coated steel or stainless steel cabinet with good workmanship

7. Plug & play mother board, easy service

8. Compact design, easy for installation

9. Green refrigerant gas R410A



Product Features:

1. More Safety

Operate at a high efficiency with no flames, fumes, or flues; Water and electricity are completely isolated.

2. Energy-saving

Provide the same amount of hot water at 1/4 cost of electrical water heaters, heat pump water heater unit can save your bill every day.

3. Super-sized evaporator coil

It adopts hydrophilic aluminium fin and rifled copper pipe.

4. High efficiency heat exchanger

It adopts high efficiency tube-in-shell heat exchanger.

5. World famous compressor

It adopts the world famous brand compressor--"Copeland", "Panasonic", "Sanyo", unmatched reliability, quiet operation, energy-saving and environmental-friendly.

6. Monobloc design, convenient installation, nice appearance.

7. All-weather running

Reliable hot water offer no matter in rainy day,snowy day or at night.

8. Running automatically

Micro-computer controlled, with timer function, it can automatically start up and stop according to the water temperature and other running conditions you set,no need for a supervisor.

9.  Environmental friendly

Environment-friendly, free of pollution, it reduces the global green house effect.



Safety Protecting System

 (1) Compressor delay protection

 (2) High pressure and low pressure protection

 (3) Water flow switch protection

 (4) Over heating protection

 (5) Sensor fault protection

 (6) Anti-phase protection and open-phase protection

 (7) Auto-antifreeze protection

 (8) Overload protection



Components and Suppliers

(1) We use the components of world famous or Chinese famous brands to make sure the good quality heat pump for best performance and long life time.

(2) All the components will be second tested by our Quality Control Department.

(3) The components brand is optional.



Quality Control

(1) Complying with ISO standard.

(2) Complete Inspection covering water system and electricity to ensure stable hot water production.

(3) General test and operational test carried out for every unit before delivery.



Special Service

(1) Offer OEM service.

(2) Make customized heat pump according to customer's requirement.

(3) Supply spare parts according to order quantity.

(4) Long warranty period.



Sales Market

Europe, Australia, Africa, Middle East, South America and etc.



All our heat pumps are manufactured through the strict test before packing. We guarantee the high quality and fast delivery time. Samples can be delivered in one week.Our service is 24 hours for you. If you have any inquires or questions, welcome to sending email to us (Email: henry@guangda-intl.com). We look forward to the cooperation with you.
