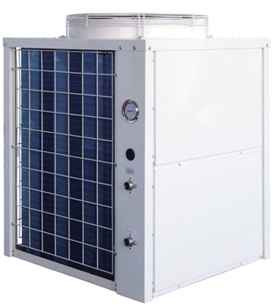

Commercial Heat Pump

TECHNICAL DATA

11kw

15kw

19kw

21kw

23kw

25kw

35kw

43kw

Heating

Norminal capacity

KW

11.4

15.7

19.8

21

23

25

34.5

42.5

Power input

KW

2.78

3.92

4.83

5.1

5.75

6.25

8.35

10.39

COP

W/W

4.1

4

4.1

4.1

4

4

4.13

4.09

Power supply

V/Ph/Hz

380-415/3/50

Max. leaving water temperature (without using backup heater)

℃

55

Rated water flow

m3/h

2

2.7

3.4

3.6

3.9

4.1

5.9

7.3

Rated water yield

L/H

245

337

425

451

495

538

742

914

Running temperature range

℃

-15-43

Refrigerant type

R410A

Compressor

DAIKIN/COPELAND/SANYO  Scroll

Max Current

6.7A

9.1A

13.8

15.5A

16.5A

16.1A

24.4A

28.4A

Water circuit Heat exchanger

High efficient shell&tube

Water pump

Option

Net Dimensions   HxWxD

mm

890×820×700

1000×820×700

990x820x691

1000x970x830

1000×1500×735

Packing Dimensions  HxWxD

mm

1000×835×720

1145x835x720

1140x850x740

1120x980x860

1140×1530×735

Air Flow Direction

Vertical

Water tube joint

Inch

3/4”

1”

1.2”

Net Weight

Kg

104

140

145

157

241

250

Gross Weight

Kg

115

155

157

176

271

280

Noise level

dB(A)

58

60

60

60

64

65

Features:

ON/OFF or Inverter type

On/off unit

Manometer

Refrigerant pressure manometer

Expansion device

 Electronic expansion valve

Auto restart

yes

NOTES:

Capacities and power inputs based on the following conditions:

- Heating: Ambient temperature 20℃/15℃,  Water temperature from 15℃ to 55℃.
