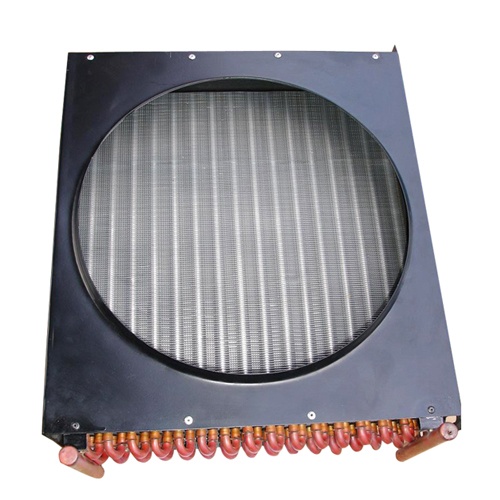

Air Cooled Condenser

Features are as follow:

l Air cooled condenser can be used in air conditioner, cold room, freezer, refrigerator and other area.

l Material: copper, aluminium, galvanized plate.

l Copper pipe: diameterΦ7, Φ7.94, Φ9.52, Φ12.7mm, etc. inner grooved or smooth tube.

l Aluminium foil: hydrophilic or bare

l Fin type: louver fin, flat fin, corrugated fin

l Pitch of fins: can be adjusted between 1.8-5.8mm

l Pitch of holes and pitch of rows: 25x21.65mm, 25.4x22mm, 21x12.7mm, 19.5x11.6mm, 31.75x27.5mm, equilateral triangle arrangement.

l Producing process: tube bend, press fins, expand tube, welding, leak test, dry, inspect, pack.

l Leakage test under 2.8MPa.

l Suitable for R134a, R22, R404a, R407c refrigerant and so on.

l Fan motors can be assembled.

Our strengths:

l More than 10 years’ experiences of manufacturing.

l Strong R&D department with experienced technical staff.

l Three- step Quality control Systems: inspect the raw material, unfinished products and finished products.

l Our products can be customized. We can produce for clients according to the samples or drawings.

l High quality products with very competitive price with perfect delivery date.

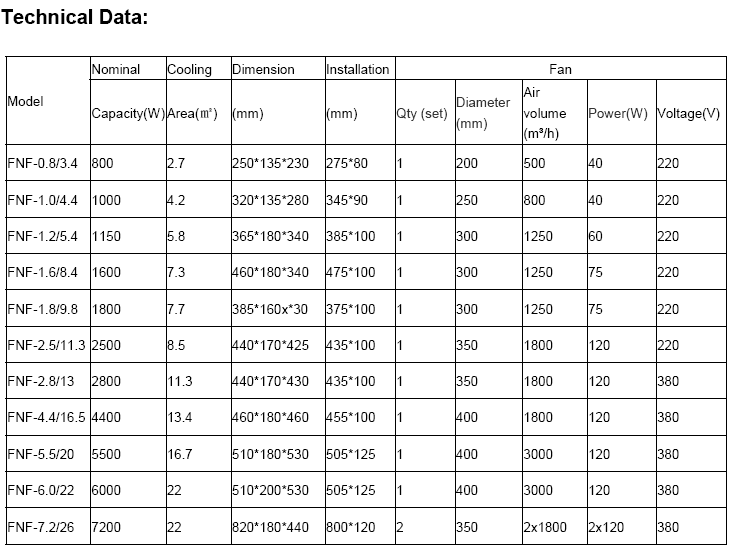

n FNF Type Air Cooled Condenser For Cold Room
