Products > Evaporator > > Copper Tube Aluminum Fin Evaporator

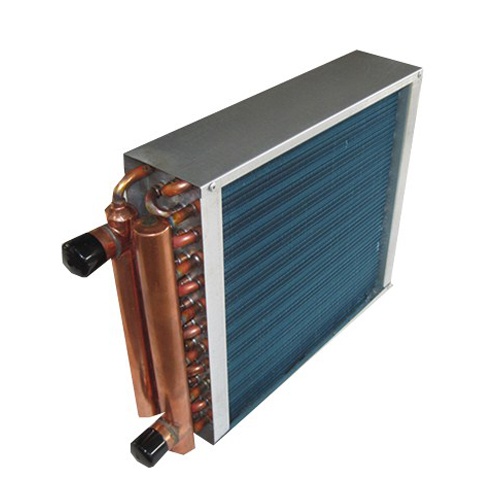

Product name : Copper Tube Aluminum Fin Evaporator
Product No. : 201539221837
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Main technical features of Copper Tube Aluminum Fin Evaporator are as followings:



Name

Copper Tube Aluminum Fin Evaporator

Application

A/C

Tube Specs

Φ9.52 Inner Grooved Copper Tube

Fin Specs

0.105mm Hydrophilic Fin

Hole Space(mm)

25

Row Space(mm)

21.65

Rows

3

Casing Material

Galvanized Steel



We are capable of producing various evaporators, condensers, and heat exchangers for air conditioning and other refrigeration factories. We are committed to be a professional supplier not only in China but also in the world. Our main products include evaporator coil, condenser coil, booster coil, hot water coil, chilled water coil, air cooler, air cooled condenser and other customized coils.



Our products are well appreciated and have enjoyed a high reputation home and abroad. Providing high quality products and professional services to satisfy the demands of our clients have been the cornerstone of us.



We Supply the Following Products and Services:



Available Fin Patterns:

No.

O.D.(mm)

Hole Space(mm)

Row Space(mm)

Fin Space(mm)

1

5

19.5

11.6

1.2~2.0

2

7

21

13.37

1.2-2.5

3

7

21

12.7

1.2-2.1

4

7

17.6

13.32

1.2-2.0

5

7

20.5

12.7

1.2-2.5

6

7.94

25.4

19.05

1.5-4.2

7

7.94

22

19.05

1.4-2.5

8

7.94

25.4

15.88

1.5-3.2

9

9.52

25.4

25.4

3.0-8.47

10

9.52

25.4

22

3.0-6.35

11

9.52

25.4

22

1.4-3.0

12

9.52

25.4

19.05

1.5-4.2

13

9.52

25

21.65

2.0-7.0

14

9.52

20.32

17.6

1.5-3.2

15

12.7

31.75

27.5

1.8-2.5

16

15.88

38.1

33

2.5-12.7

Remarks:









1. Material: copper, aluminum, galvanized steel



2. Copper pipe: diameter Φ5, Φ7, Φ7.94, Φ9.52, Φ12.7, Φ15.88mm



3. Type of tube: inner grooved or smooth tube





4. Fin type: hydrophilic, bare, golden or other coatings



5. Fin surface: louver fin, flat fin, corrugated fin



6. Fin space: can be adjusted between 1.2-12.7mm referred to the above

7. Hole space and row space : 25x21.65mm, 25.4x22mm, 21x12.7mm,

  19.5x11.6mm, 31.75x27.5mm,etc., equilateral triangle arrangement.

8. Suitable for R134A, R410A, R404A, R407C refrigerant and so on.



9. Leakage test: 2.5Mpa Nitrogen





10. Producing process: tube bending, fin punching, fin installation, tube expanding,

   welding, leakage test, drying, packing





11. Customized service is available according to your drawings or samples



Our Advantages:

1. Professional manufacturer with advanced production facilities: automatic welding machine, fin punching machine, dryer machine, etc.

2. Experienced technical staff, skilled in heat exchanger design software, such as CAD, SOLIDWORKS.

3. Three step quality control inspections: the raw materials, semi-products and finished goods.

4. Rapid response to you within 24 hours after receiving your letters.

5. Competitive price with high quality products and perfect lead time.



We can not only produce by your samples or drawings, but also help you design various heat exchangers. Welcome sending your drawings or samples to us. If you do not find the right model in our website, please contact us: Tel:0086-138-25510256, Email: henry@guangda-intl.com
